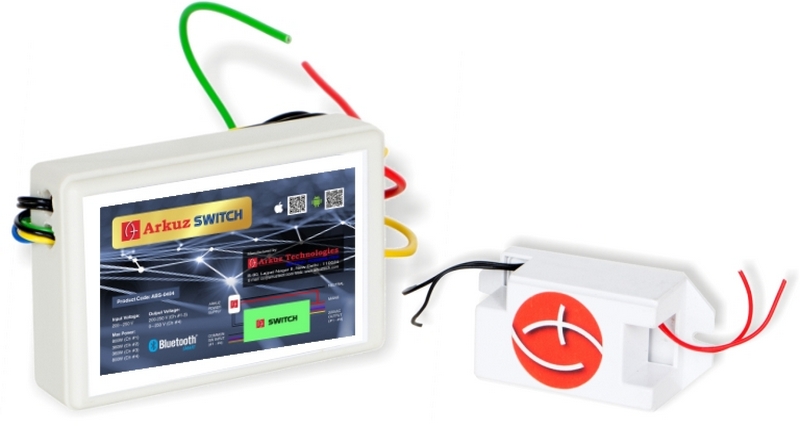

ARKUZ SWITCH

ABS - 0404

Bluetooth 4.0 powered device for remote controlling electrical outlets including lights, sockets & fans in the residential space and controlling building automation using an contractor. Toggle switches specially suitable for LED/CFL loads. Incandescent / halogen / fan / Dimmable LED / Dimmable CFL / Fan can be operated on Voltage Regulator channel. The loads connected to the device can also be operated using wall switches on switchboard panel.

Channel :

4 ( 3 Toggle Switch, 1 Voltage Regulator )

Channel : 1

  • Input Voltage: 220VAC
  • Output Voltage: 220VAC
  • Max Current: 3.5 Amp
  • Max Wattage: 800W

Channel : 2-3

  • Input Voltage: 220VAC
  • Output Voltage: 220VAC
  • Max Current: 1.5 Amp
  • Max Wattage: 300W

Channel : 4

  • Input Voltage: 220VAC
  • Output Voltage: 0VAC - 220VAC
  • Max Current: 3.5 Amp
  • Max Wattage: 800W

Works Best With

Switchboard Panel, Lighting (LED, CFL, Tube Lights, Incandescent bulbs), TV-Set top box-DVD player, Music system, ampliļ¬ers, coffee machine, solenoid locks, electric motors, electric fountain, computers and monitors.

Download Brochure
